Recycling adjustable False-Car working platform specification
Type
Hoisting High meter
Capacity kgs
Car Rails Distance mm
Speed m/s
Work Voltage
CTB-OM-FC400
60 meter
400 kgs
<=2000mm
0.2 m/s
380V-3P-50Hz
CTB-OM-FC600
120 meter
600 kgs
<=4000mm
0.2 m/s
380V-3P-50Hz

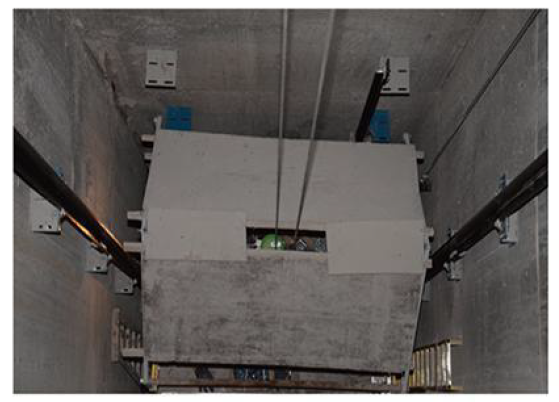

• Early move in lift shaft False Car facilitae to install hoist-way equipment prior to shaft and machine room completion • Early Setup False Car erected less time and effective than Scaffold • More Efficient Guide-Rail Installation Working platform allows for much quicker installation unlimited building height • Cost One time investment of installation costs recycle on all future projects • Full Adjustability Safety system allows for adjustability to hoist-ways of all sizes • Increased Safety 4 safeties , (Rope gear, Motor gear, Rail gear)
Parameter

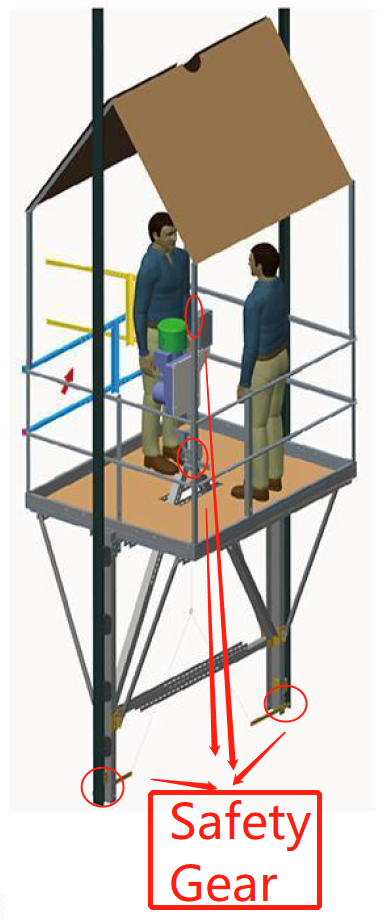

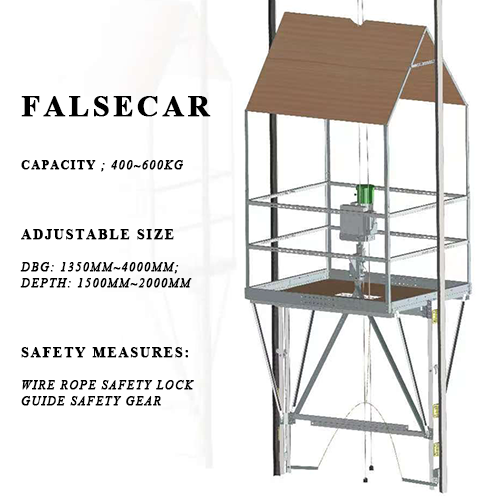

•Rated Capacity : 400~600kg by different models • Standard Size Platform DBG: 1350mm~2000mm; 1650mm~3000; 2150mm~4000mm adjustable Depth: 1500mm~2000mm adjustable • Safety Measures: Wire Rope Safety Lock, Guide Safety Gear .
Motor Data Initial Lift : L2KN / 8 KN Speed: 18m/min / 9m/min Walt 1.5KW / 1.8KW Rope: 6.3mm / 10.2mm Weight : 40KG / 50KG
