Above price is based on specification :12 degree, Step stainless, VVVF Control, Indoor Type, Economic Type,No Cladding.
Product Description

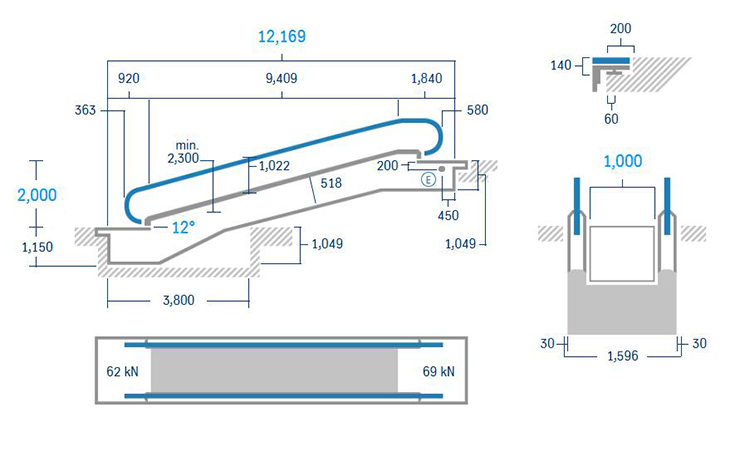

| Step(mm) | Lifting height (mm) |
Speed (m/s) | Person | Inclination (°) | Traction machine power(KW) |
Power capacity (KVA) |
Rated current (A) |
| 800 | 1000-3800 | 0.5 | 6750 | 0.10,11,12 | 7.5 | 15 | 39 |
| 3800-6000 | 11 | 22 | 58 | ||||
| 1000 | 1000-3000 | 0.5 | 9000 | 0.10,11,12 | 7.7 | 15 | 39 |
| 3000-4800 | 11 | 22 | 58 | ||||
| 4800-6000 | 15 | 30 | 78 |
| Product Name | Commercial escalator/travelator With Good Price |
| Control | VVVF control / PLC |
| Traction | Gear traction machine |
| Standard | CE, SASO, CCC, GOST, ISO9001, OHSMS18001 |
| Rise Hight | 3000< Rize Hight< 25000 mm |
| Speed | 0.5m/s |
| Material | All #304 top grade stainless steel hairline, plus mirror & etching finish(optional) |
| Application | Building,Shopping Mall, Airport Commercial escalator/travelator etc. |
| Standard Decoration | |
| Step | Stainless Step and Aluminun Step |
| Inner/Outter Decking | 304 hairline st.steel |
| Cladding | 304 hairline st.steel |
| Handrail | Black / Red / blue |
| Lighting | Handrail LED, Step LED |
|
(1) .Function of full-automatic digital faulty display
|
（11）Brake protection |
|
(2) .Function of automatic oiling and lubricating
|
（12）Main motor protection from overload |
|
(3) .Function of operation on the upper or lower part
|
（13）Mail power supply protection from short circuit |
|
(4) .Function of reversion on the upper or lower part
|
（14）Main power supply protection from phase fault and phase failure |
|
(5) .Entrance protection of the handrail
|
（15）Electric over-speed protection |
|
(6) .Comb plate protection from foreign objects
|
（16）Electric anti-reversion protection |
|
(7) .Apron protection from distortion
|
（17）Examination and repair and interlock protection |
|
(8) .Step chain protection from extension, shortening and breaking
|
（18）Emergency stop button |
|
(9) .Driving chain protection from breaking
|
（19）Speed monitoring function of handrail |
|
(10) .Step protection from sinking
|
（20）Motor brake open detection function |
