How to maintenace / Repair escalator handrail belt

Views : 2710
Update time : 2019-07-22 11:29:31
How to Maintenace/Repairing Escalator/ Moving Wall  Handrail Belt

The handrail belt broken may be as follow reasons:

 Falled items inside handrail belt
 Tightened tension of handrail belt
 Poor installation for handrail belt
Explan :
            the tightenedd rotary resulted in adjusted tension handrail belt and falled dust inside , are easily generated heat in time operation, finally the oil of bearing rotary will be dried to stop or broke rollers, and poor installed handrail belt under this condition the handrail belt will be broked .

But how to Maintenace/Repairing Escalator/ Moving Wall  Handrail Belt:

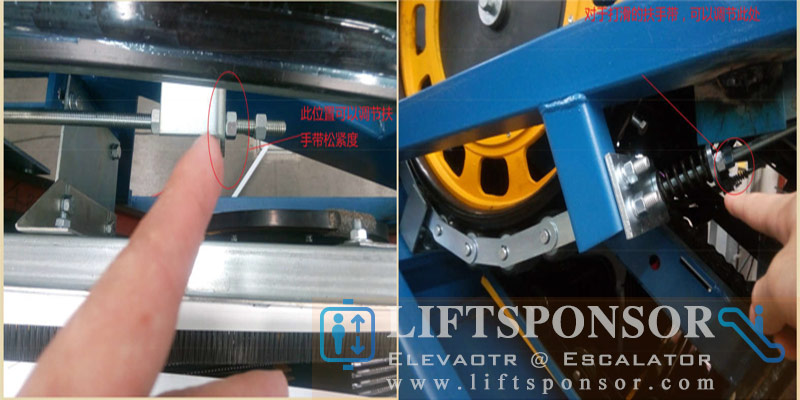

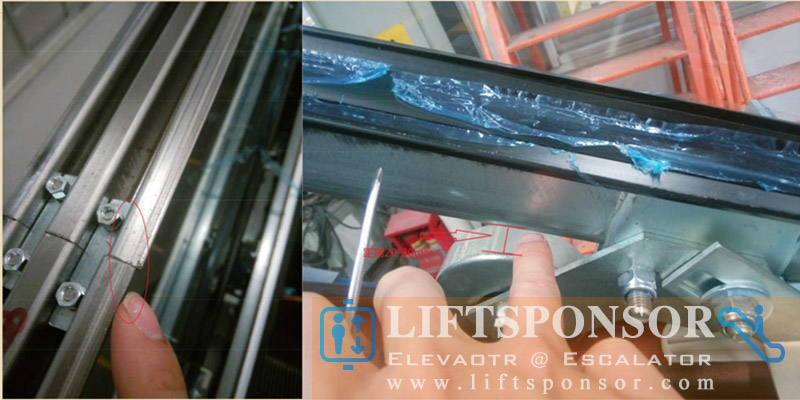

 1. Polishing scratching spots in handrail frame joints and Adjust its tension to Anti-PULL OUT, to provent scratching and to Anti-PULL OUT

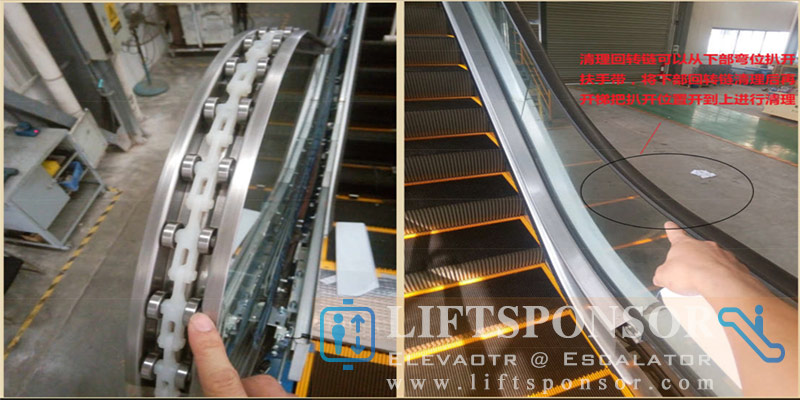

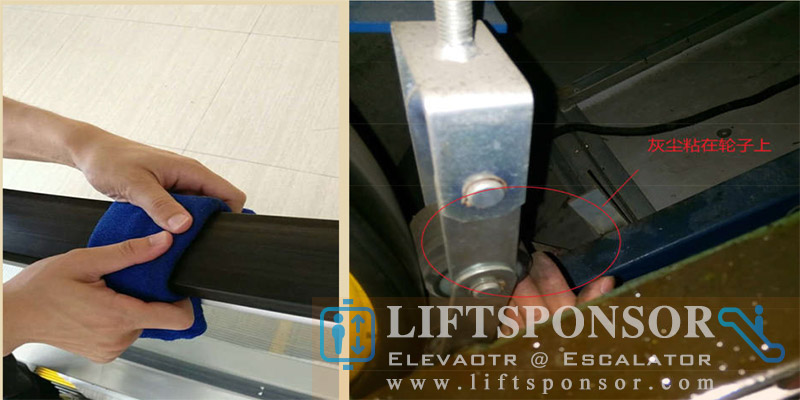

2. The technician should clean the surface of handrail belt per day to provent falling dust to which will be stick



3.The technician should inspect rotary twice per month, replace and clear it upon hearing abnormal sounds or broken roller



4. The technician should stop operating handrail belt upon finding the heated handrail belt, aligning its spring after loosen its tension




More information please contact us by email or whatsapp

Technical supports by LIFTSPONSOR
