Elevator Cast Iron Roping Pulley consist of linkage of movement for Cabin and CWT
Customers check its function and parameters in accordance with its specification and type to ensure its performance matching with the elevator actual state.
Note : Final order be requested size of Axle included : L1 / L2 / L3 / L4 / D2 and Axle Type ( Flat Clip or U Clip ? )

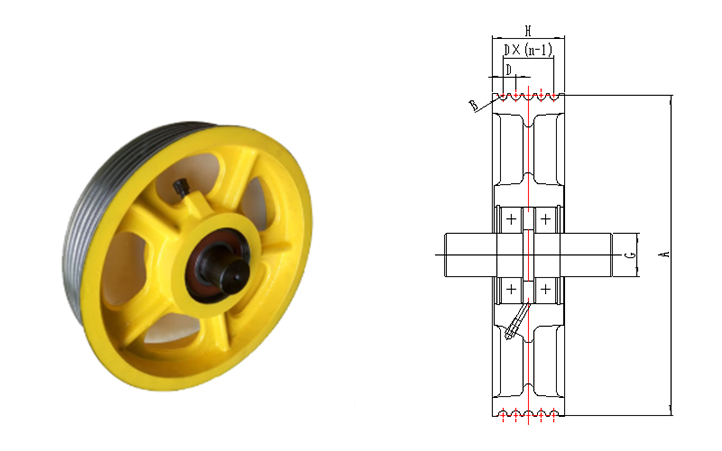

Cast Iron Roping Pulley Specification :
| Itme | Type # | Diameter A.mm |
Thichness H.mm |
Sheave # N |
Rope Diameter B.mm |
Sheave Distance D.mm |
Pole Diameter G. mm |
| Cast Iron Roping Pulley | CTB-PC-CIRP-320 |
ø320 |
75~90 | 3/4/5/6/7 | 8 | 12 | ø55 |
| 90 | 4 | 8 | 14 | ø55 | |||
| 90 | 5 | 10 | 16 | ø55 | |||
| CTB-PC-CIRP-400 |
ø400 |
75~110 | 3/4/5/6/7/8 | 8 | 12 | ø55/60/65 | |
| 75~140 | 3/4/5/6/7/8 | 10 | 14 | ø55/60/65 | |||
| 75~140 | 3/4/5/6/7/8 | 10 | 15 | ø55/60/65 | |||
| 75~140 | 3/4/5/6/7/8 | 10 | 15.5 | ø55/60/65 | |||
| 75~140 | 3/4/5/6/7/8 | 10 | 16 | ø55/60/65 | |||
| CTB-PC-CIRP-480 |
ø480 |
110 | 8 | 8 | 12 | ø55/65 | |
| 110 | 7 | 10 | 14 | ø55/65 | |||
| 120~140 | 7`/8 | 10 | 15 | ø55/65 | |||
| 90~140 | 5`/8 | 10 | 16 | ø55/65 | |||
| CTB-PC-CIRP-520 |
ø520 |
90~110 | 4/5/6/7/8 | 11 | 12 | ø55/60/65 | |
| 90~110 | 4/5/6/7/8 | 12 | 14 | ø55/60/65 | |||
| 90~140 | 4/5/6/7/8 | 13 | 15 | ø55/60/65 | |||
| 90~140 | 4/5/6/7/8 | 14 | 16 | ø55/60/65 | |||
| CTB-PC-CIRP-540 |
ø540 |
120~150 | 6/7/8/9 | 10 | 15 | ø55/65/70/75 | |
| 110~150 | 6/7/8/9 | 10 | 16 | ø55/65/70/75 | |||
| 140~150 | 6/7/8/9 | 12 | 17 | ø55/65/70/75 | |||
| CTB-PC-CIRP-640 |
ø640 |
120~140 | 5/6/7/8 | 10 | 15 | ø50/55/65/80 | |
| 110~140 | 5/6/7/8 | 13 | 20 | ø50/55/65/80 | |||
| 140~160 | 5/6/7/8 | 16 | 25 | ø50/55/65/80 | |||
| CTB-PC-CIRP-660 |
ø660 |
140~160 | 5/6/7/8 | 13 | 18 | ø50/55/65/80 | |
| 160 | 5/6/7/8 | 13 | 19 | ø50/55/65/80 | |||
| 140~170 | 5/6/7/8 | 13 | 20 | ø50/55/65/80 | |||
| 140~210 | 5/6/7/8 | 16 | 25 | ø50/55/65/80 |
